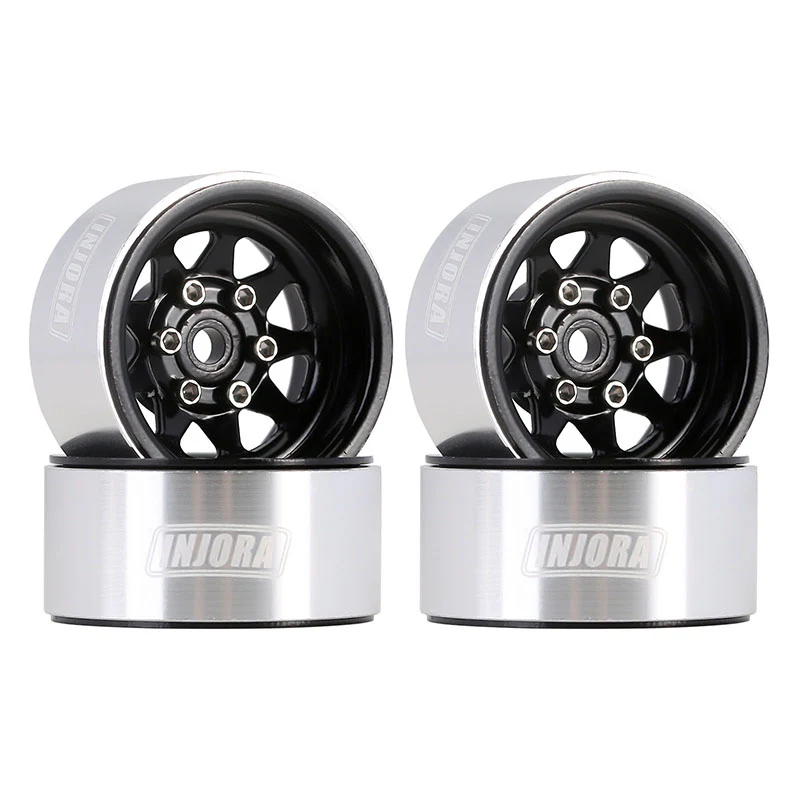

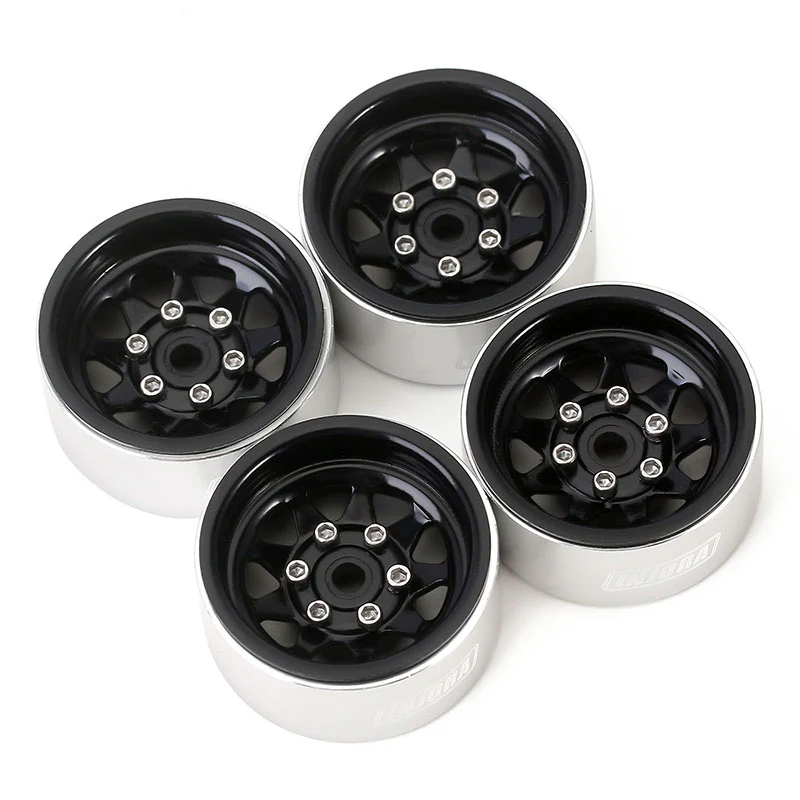

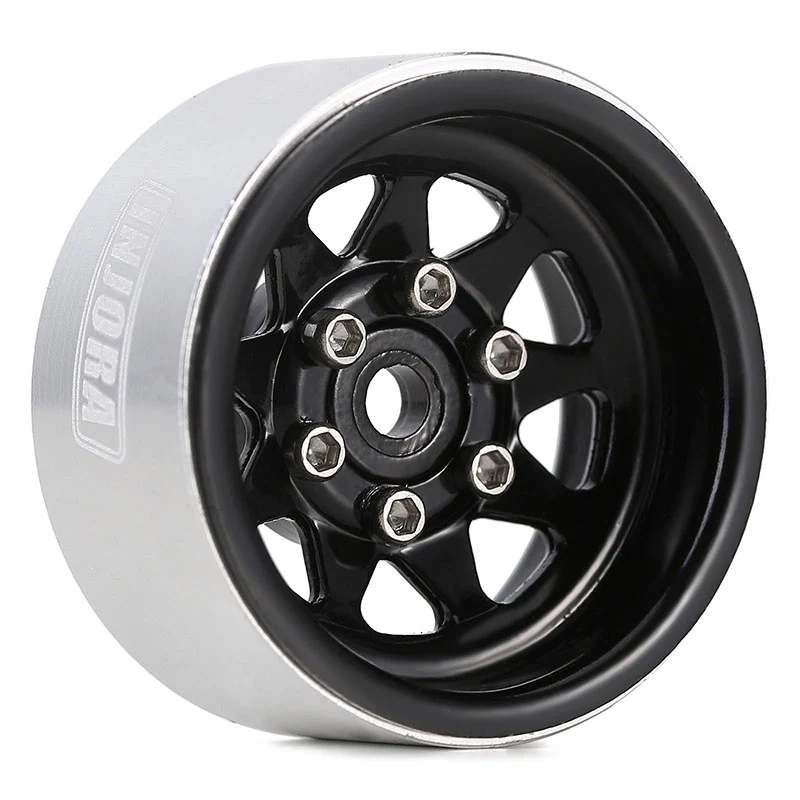

INJORA 1.0" Negative Offset 3.78mm Deep Dish Stamped Steel Wheels Rims for 1/18 1/24 RC Crawlers (4pcs) (W1004)

https://figura-kenya.odoo.com/web/image/product.template/127/image_1920?unique=af21616
(0 review)

KSh 6,100.00 6100.0 KES KSh 6,100.00

Not Available For Sale

  • Colour

This combination does not exist.

Contact Us

Shipping / Delivery in Kenya within 2-3 Business Days when available in stock

Share

OVERVIEWCOMPATIBILITYFEATURESSPECIFICATIONSINCLUDESNOTES

OVERVIEW

Upgrade your RC crawler with INJORA’s premium 1.0" beadlock wheels, designed for realism, durability, and performance. These deep dish, negative offset wheels are ideal for micro crawlers and provide a solid combination of style and function.

Important Note

For assembly, begin with 2 long screws to align and hold all components, then insert the remaining 4 short screws. Replace the long screws with short ones once the parts are secured.

Tighten all screws in a star pattern to ensure even pressure and proper fitment.

COMPATIBILITY

 Designed to fit a wide range of 1/24 and 1/18 scale RC crawlers, including:

  • Axial SCX24, AX24
  • FMS FCX24 (1/24) and FCX18 (1/18)
  • Traxxas TRX4M (1/18)
  • Redcat Ascent 18 (1/18)
  • Other micro crawler models with 7mm hex hubs

FEATURES

 These include:

  • Deep Dish Design with a -3.78mm Negative Offset for enhanced stance and realism
  • Stamped Steel Construction for increased strength and scale authenticity
  • Durable Powder-Coated Finish for a sleek, rugged look
  • Realistic Scale Appearance to match full-size crawler aesthetics
  • Internal Beadlock System ensures secure tire mounting without the need for glue
  • Removable Centre Hub for customization and easy maintenance
  • Universal 7mm Hex Fitment, compatible with most 1.0" tyres

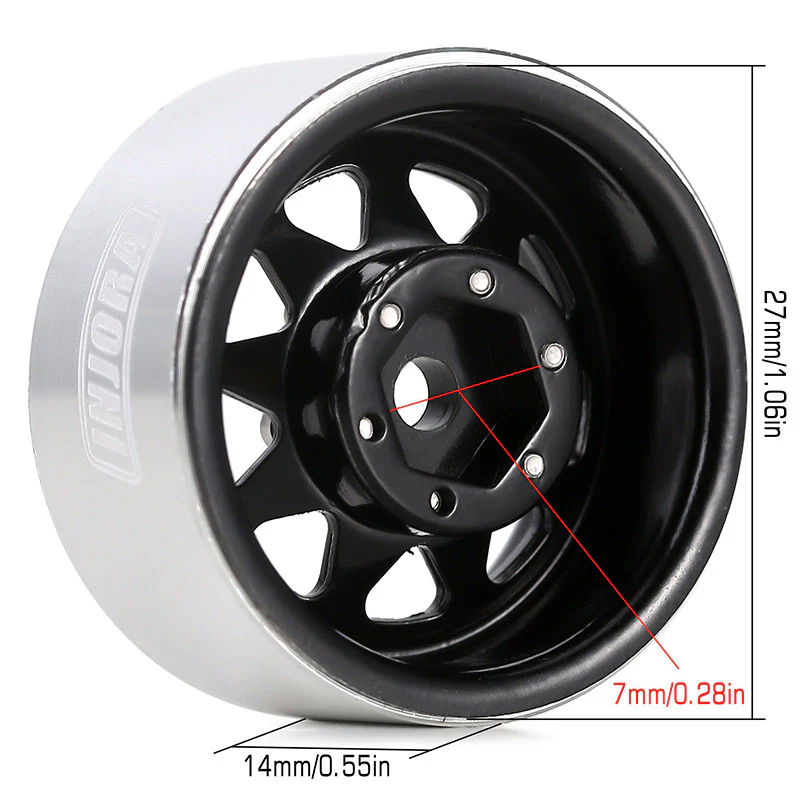

SPECIFICATIONS

 The key specifications to consider are:

  • Material: Steel (outer wheel), Aluminium (inner rings)
  • Outer Diameter: 27mm (1.06")
  • Width: 14mm (0.55")
  • Offset: -3.78mm (-0.15")
  • Wheel Hub Size: 7mm (0.28")
  • Weight per Wheel: 15g (0.53oz)
  • Inner Ring Weight: 4g per piece
  • Fasteners per Wheel: 6 × M1.4 × 5.4mm screws
  • Required Tool: 0.05" hex driver (1.27mm or 1.3mm also compatible)

INCLUDES

 The packaging includes the following items:

  • 4 × INJORA 1.0" Beadlock Wheel Rims

NOTES

 Here are some pointers to note during assembly:

  • Begin with 2 long screws to align and hold all components, then insert the remaining 4 short screws. Replace the long screws with short ones once the parts are secured.
  • Tighten all screws in a star pattern to ensure even pressure and proper fitment.
