OVERVIEW

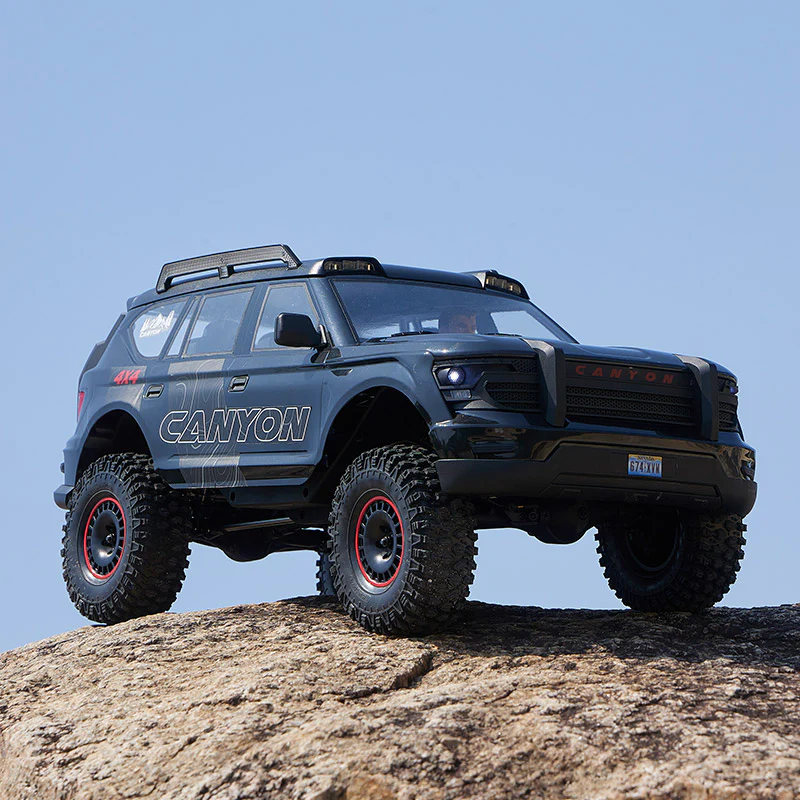

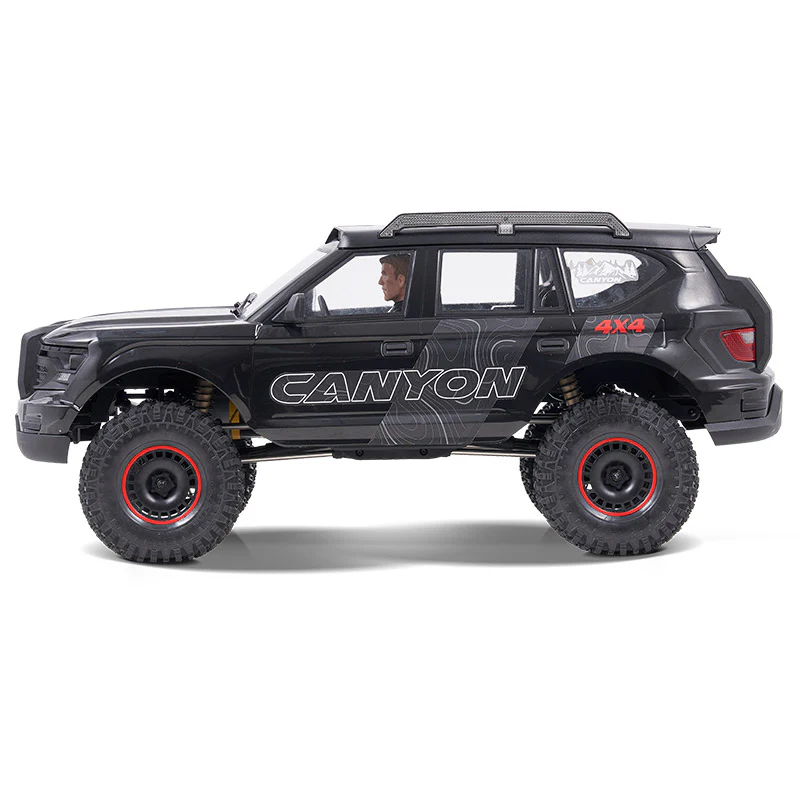

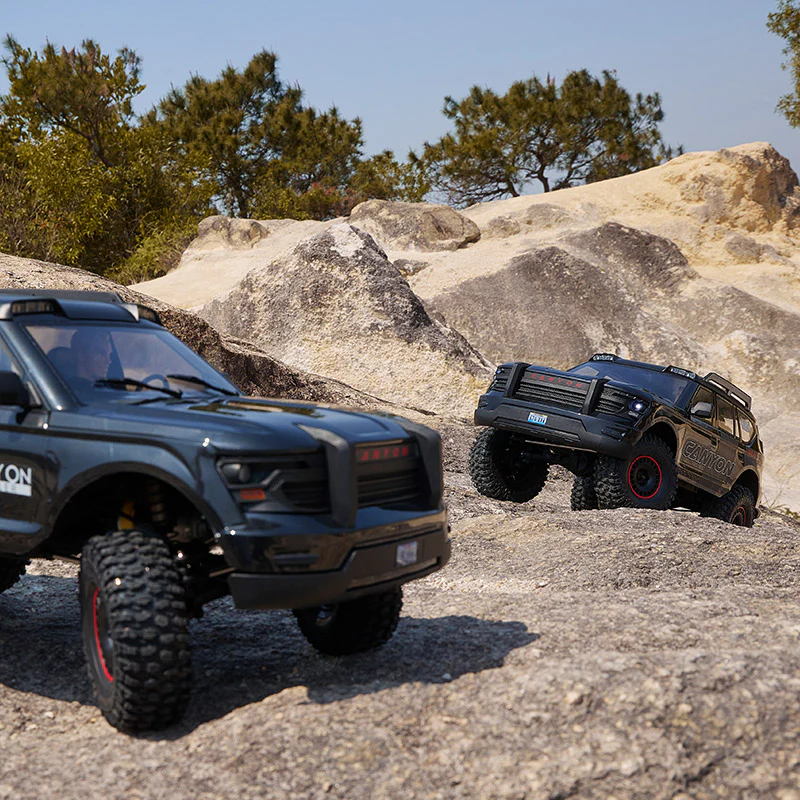

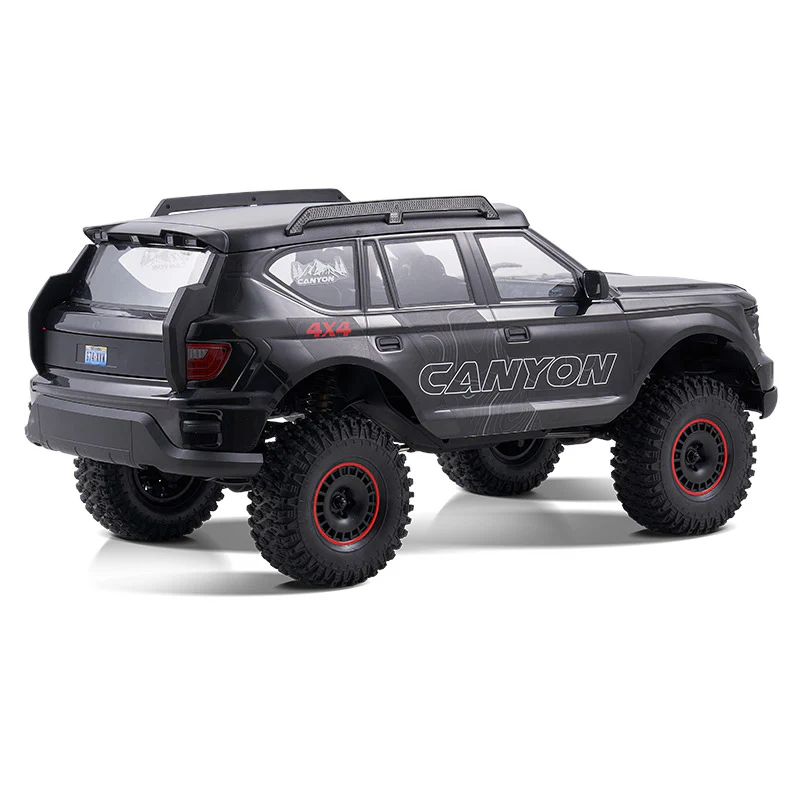

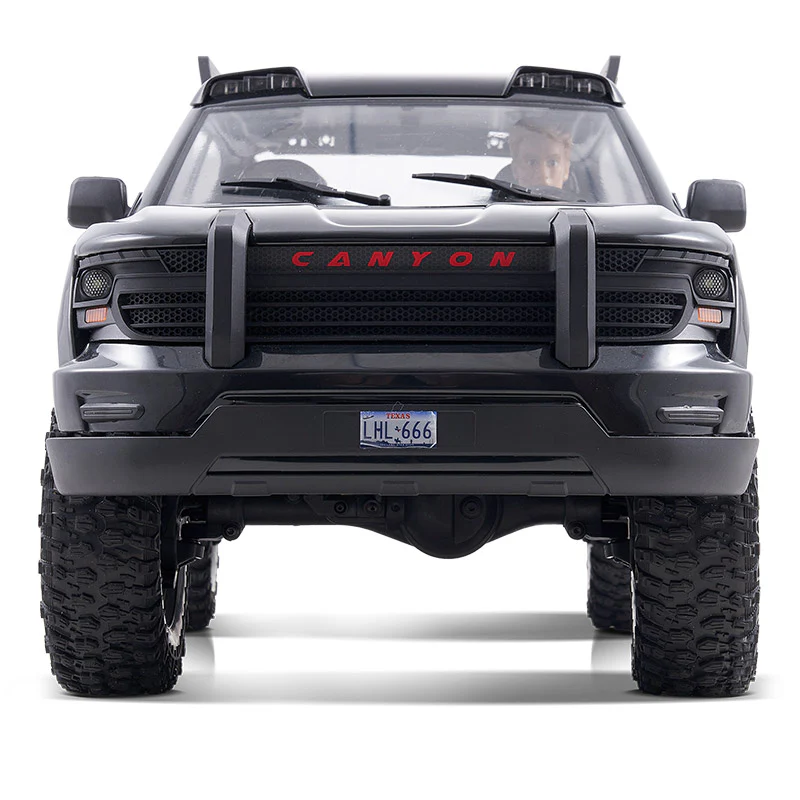

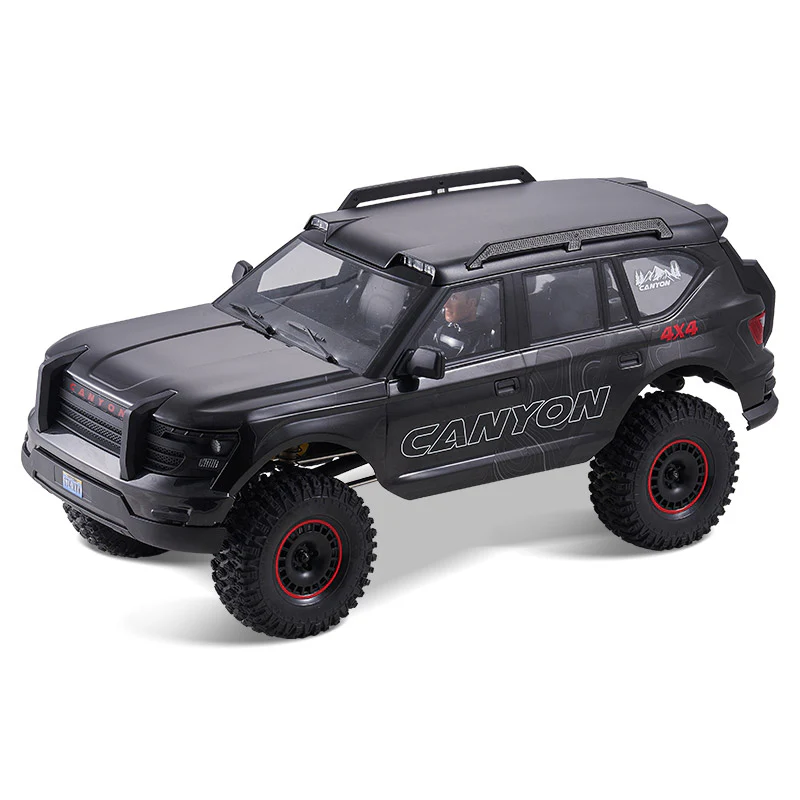

Meet the Canyon RS — an off-road powerhouse built for scale realism and trail-ready performance. With its low-centre-of-gravity (LCG) chassis, portal axles, two-speed transmission and selectable diff locks, this 1/10-scale machine adapts to rocks, roots and rugged dunes alike. Underneath the striking PC body shell (inspired by Dubai’s elite police supercars) lies a purpose-built crawler: metal oil-filled shocks, full metal gears and bearings, and the patented DIG “tank-turn” function for ultra-tight pivots. Whether you’re rock crawling or trail bashing, the Canyon RS delivers serious capability right out of the box.
FEATURES

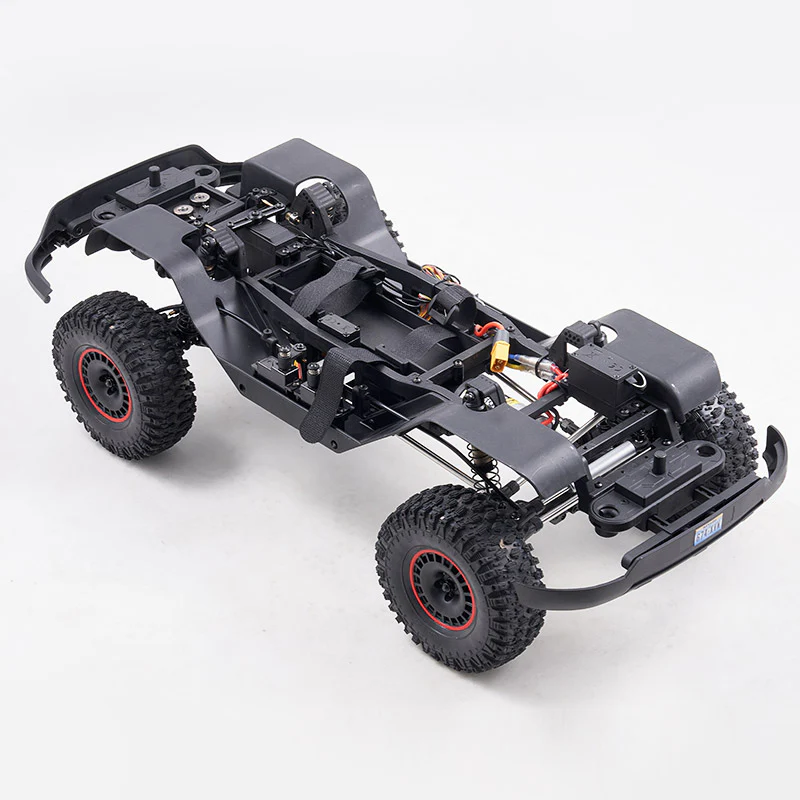

- New design LCG chassis that keeps the truck stable and planted.

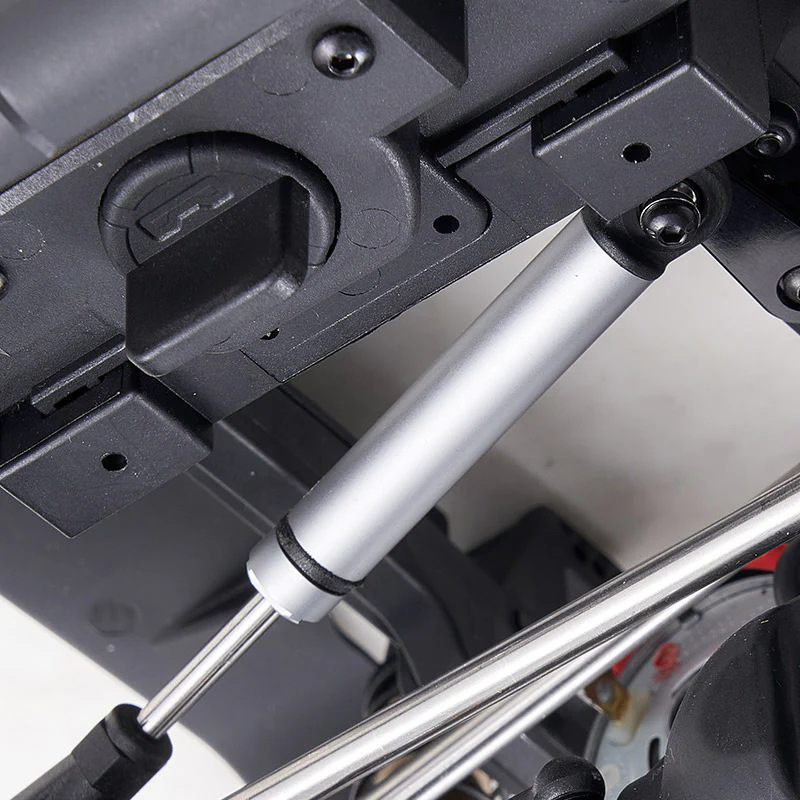

- Servo-shock absorption protection to shield the steering servo from harsh impacts.
- Patented DIG function with remote-controlled single rear-wheel lock for tight turns.
- Patented quick-release body system for fast access and easy maintenance.
- Front and rear portal axles for exceptional ground clearance and articulation.

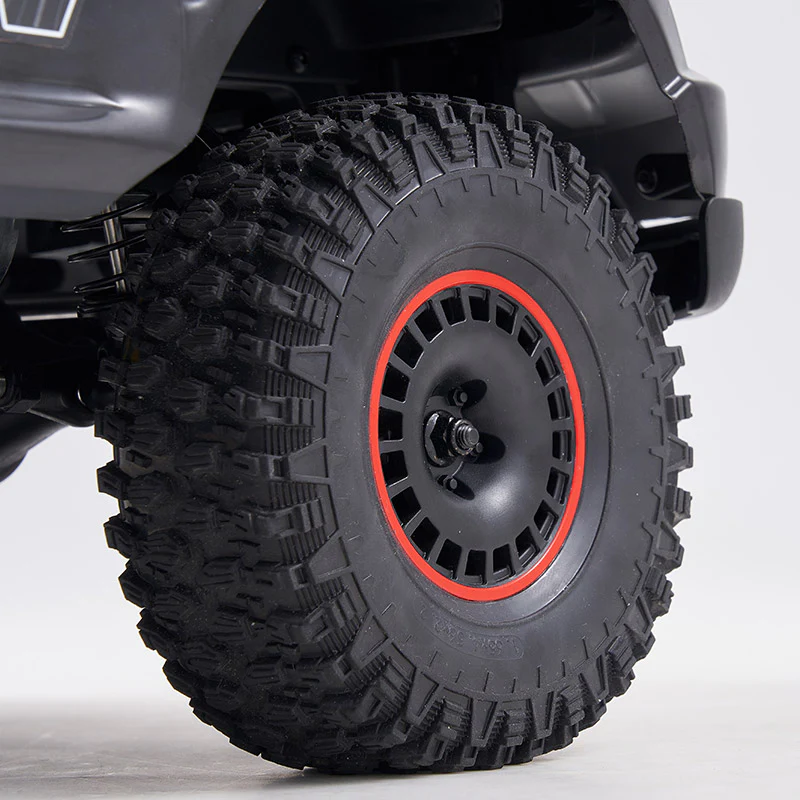

- High-traction crawling tyres designed for rocks, sand and uneven terrain.
- Full LED lighting system (headlights, turn signals, tail lights) controlled remotely.
- Realistic scale interior with fine details and driver figure.

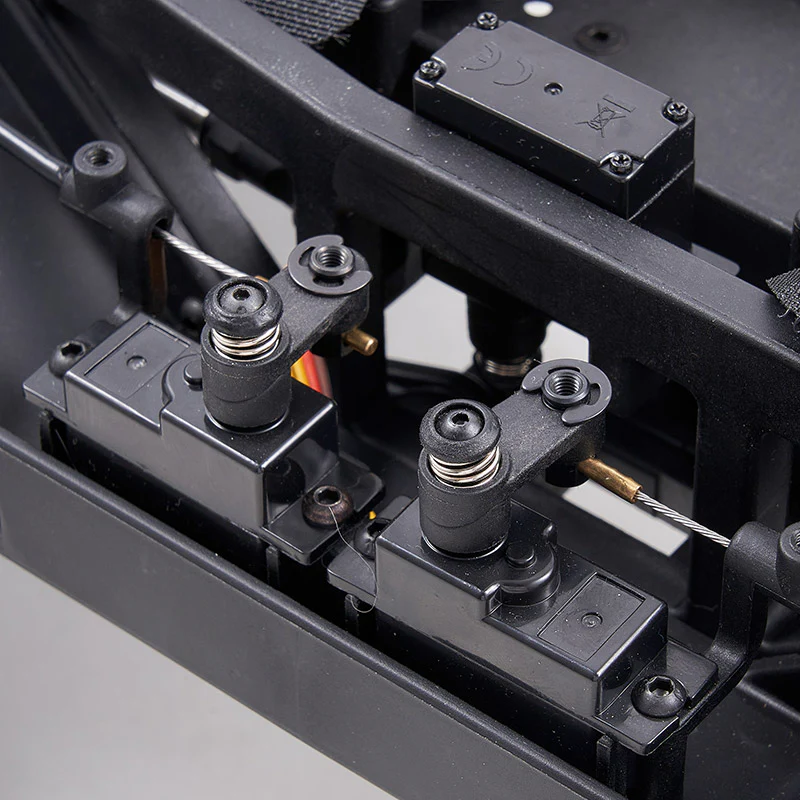

- Remote-controlled locking front and rear differentials for terrain versatility.
- Two-speed transmission (low for crawling, high for trail running).

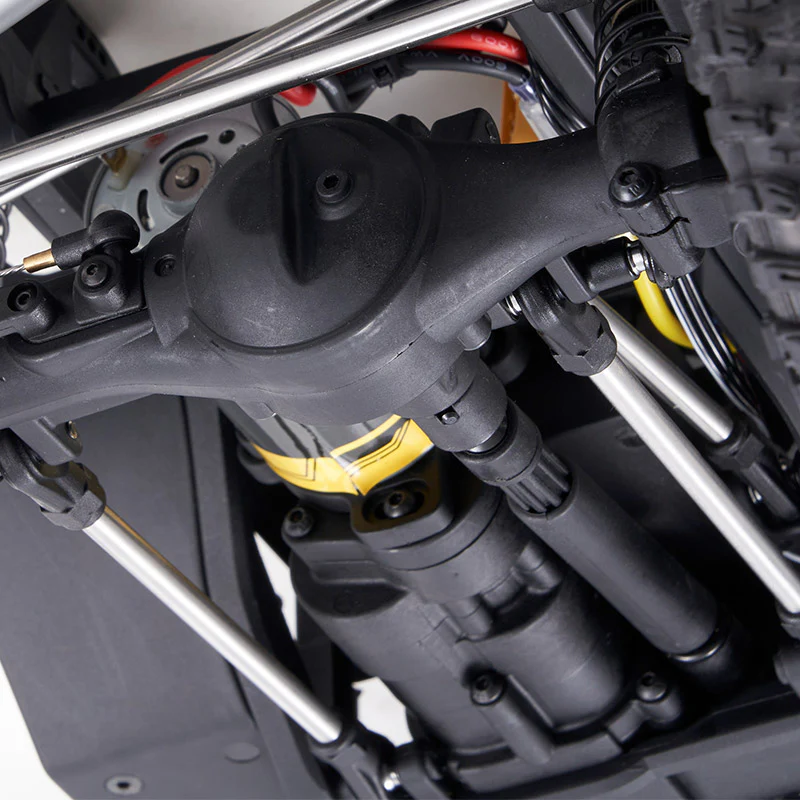

- Counter-rotating driveshafts to minimise torque twist and maintain stability.
- All-metal oil-filled shocks, metal gears (plus plastic spur) and full set of ball bearings for quality durability.
- Independent ESC layout and all-metal drivetrain construction.

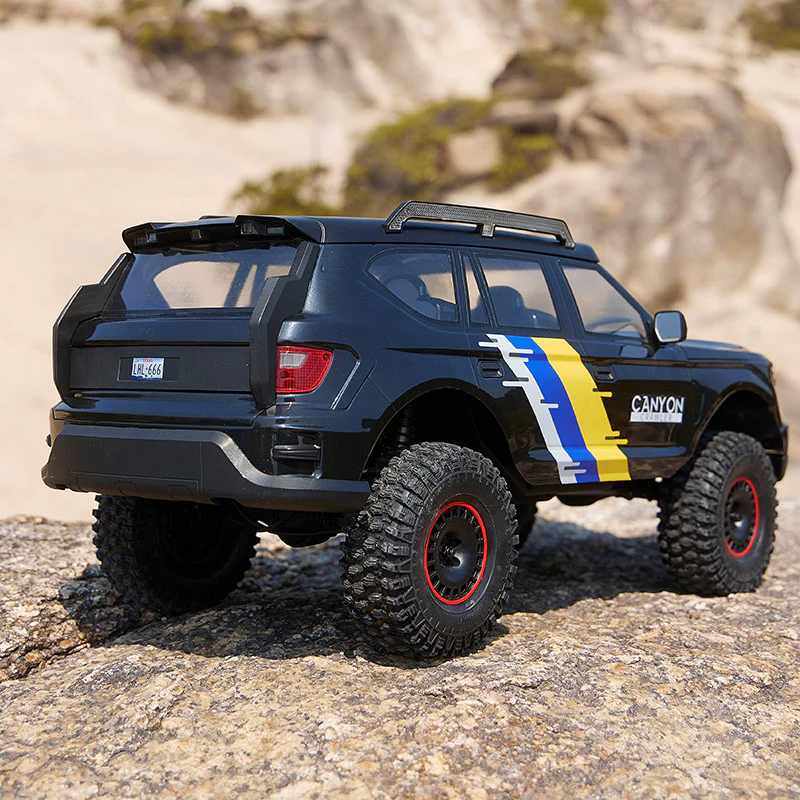

- Includes two decal sets for customisation and scale styling.
SPECIFICATIONS
- Scale: 1/10
- Length: 580 mm
- Width: 260 mm
- Height: 256 mm
- Wheelbase: 325 mm
- Tread: 208 mm
- Ground Clearance: 60 mm
- Approach Angle: 38°
- Departure Angle: 39.5°
- Breakover Angle: 45°
- Tyre Size (D × W): 116 mm × 42 mm
- Drive System: 4WD
- Motor: 550 Brushed Motor 32T (pre-installed)
- Recommended Battery: 2-3S LiPo (XT60 plug)
- Radio: 2.4 GHz 11-Channel Transmitter & Receiver (MG11 + FS-R11P-BS)
- Maximum Control Distance: Approx. 150 m
- Steering Type: 2-WS with max steering angle of 42°
INCLUDES
- 1 × FMS 1/10 Canyon RS
- 1 × MG11 2.4GHz Transmitter
- 1 × FS-R11P-BS Receiver (installed)
- 1 × 550 Brushed Motor 32T (installed)
- 1 × Product Manual
NEEDED TO COMPLETE
- 4 × AA Batteries for the transmitter
- 1 × LiPo Battery & Charger for the kit (Recommended: 2S or 3S LiPo, 5000 mAh with XT60 plug)
